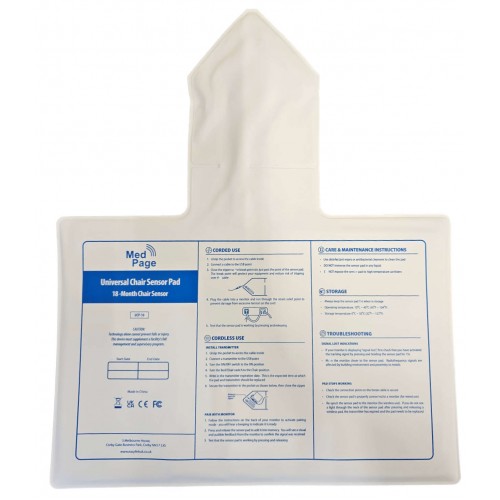

MPUCP10 Universal Chair Occupancy Detection Sensor Pad

✓ High quality, durable under-cushion pressure sensor pad
✓ Provides an immediate response to carers on chair exit
✓ Proven to reduce fall in domestic and commercial care settings
✓ Available as totally cordless (integral transmitter) or cabled versions

The MPUCP10 is the latest sensor pad development by Medpage, providing a reliable and cost-effective means of detecting a person rising from their chair. Connection of a transmitter or cable to the sensor is completed inside the pocket and protected by a zipper seal. The sensor is used as part of a system comprising of an alarm controller and or a carer alert radio pager.

Note: This product code is for sensor pad only, no transmitter, no connection cable.

Sensor Pad Options

Sensor only: Code MPUCP10
Sensor with transmitter: Code MPUCP10T
Sensor with cable: MPUCP10L

Compatible with:

MPBTX-21
MPCSA11
BMDV-11

Key Features

• Fall reducing chair sensor pad
• Designed for use under a chair cushion
• Can be used on the top of a chair or wheelchair cushion
• Hypoallergenic disinfectant resistant materials
• Available as totally cordless or with connection cable
• User instructions printed on pad for convenience
• Usage Start Date End Date record label

Technical Features MPUCP10
Material: PVC
Conductive material: Silver and Carbon paste
Dimensions: 38cm x 25.5cm
PVC thickness: 0.45mm
Non-conductive material thickness: 5mm
Total uncompressed thickness: 6.4mm
