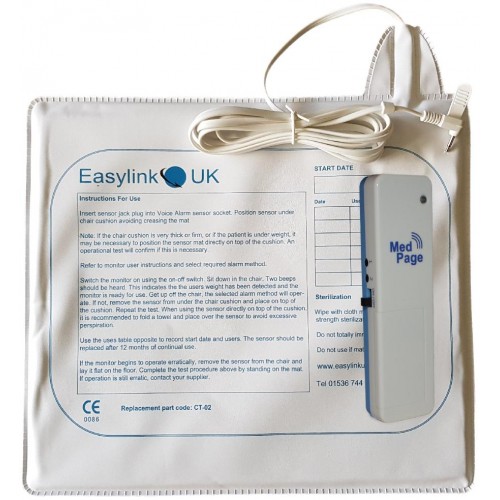

NMDTX-CT2 Long Range Transmitter with Chair Pressure Sensor Pad

✓ Transmits an alarm signal to carer pagers when a patient rises from their chair
✓ Typical transmission range of up to 400M
✓ Suitable for Care Homes, Hospitals and stone-built properties
✓ Programmable with identification message default message Chair Alarm 1

The NMDTX is a high performance POCSAG messaging transmitter with multi-function selection for chair/bed occupancy notification, floor pressure mat and door contact alarm. See additional features below. As a chair monitor the alarm notification can be selected for instant, 15 and 30-minute delay. With a battery life of 12-months it is economical to use too.

Key Features

• Provides wireless notifications to a person leaving and returning to their chair
• Wireless operating range of up to 400M (open field)
• Option for personalised notification message (if used in a multiple monitoring system)
• Compatible with Medpage EM300 and EM400 data message pagers
• Quick and easy to install and operate
• Receive pager notifications for exit and return to chair

Technical Features NMDTX
Multi-Function sensor transmitter
Long range transmission (up to 400M)
2 x Trigger Input Sockets 2.5mm & 3.5mm
Trigger mode selectable for N/O or N/C
Secure On/Off Power switch (selectable)
FSK transmission 433.92MHz @ 10mW
POCSAG Message programmable
Optional programming software available (for trade only)
Dimensions: L 145mm W 40mm D 22mm
Powered by 2 x AAA batteries
12 Month typical use before battery change
Low battery warning LED with transmission message
System status LED
Mode Selection Options:
Bed/Chair leaving alarm (with 15-minute alarm delay option)
Floor pressure mat alarm
Magnetic door sensor alarm (with door open timer)
Water level & Enuresis sensor detection
Programmable alert messages (when used with data pager EM300)
Pre-programmed standard messages for Bed, Door, Floor mat.
Multi-Receiver addressable

Technical Features CT2 Chair Sensor Pad
CT-2 Chair sensor (380mm x 300mm)
3M connector lead
Connector: 2.5mm mono Jack plug
Silver lined anti-corrosion switch contact
Durable, flexible material
Resistant to diluted disinfectants

Compatible with
CT-3 Alarm controller
NMDTX (long range transmitter)
NMDTXM (standard multi-function alarm transmitter)
CTMV Recordable voice alarm receiver
