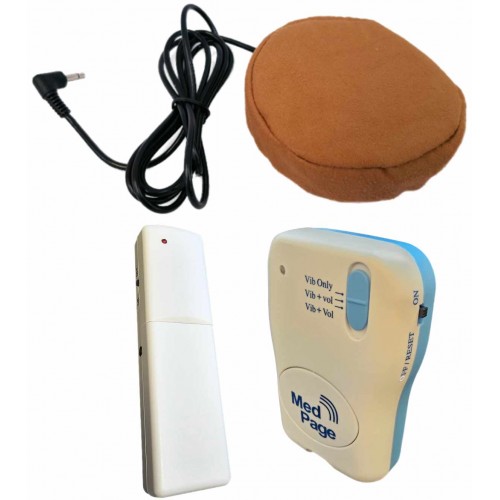

MPPL-PSKIT (2023 Model) Soft touch low tactile pillow help call switch with MPPLV4 alarm radio pager

✓ Help call solution for patients with limited physical movement
✓ Attaches to the users pillow or wheelchair cushion
✓ Activated using the head or cheek
✓ Sends alert to MPPL tone/vibrate pager

Help call solution specifically designed for patients with limited physical movement who are physically unable to operate a traditional call button system. Using the supplied safety pin or velcro attachment the switch is securely fastened to the user's pillow or wheelchair arm rest and is activated with the lightest of touches using the cheek, head, or part of the arm. When activated, an alarm is sent to the MPPLV4 pager with tone or vibrate alert. The switch features a smooth and soft foam surface (washable), which is comfortable to operate by the user and includes a protective cover that is removable for washing. This 2023 model includes the updated digital MPPLV4 pager and MPPL-TXU2 digital transmitter, and now has an alarm signalling range of up to 400M.

Retro-compatible with previous models/equipment on standard signal range of 100M.

Key Features

• Enables a person with limited physical movement to raise an alert to a carer pager
• Suitable for stroke patients and the severely disabled
• Operated using pressure from the head, cheek, or moveable limb
• Includes protective soft fabric switch cover
• Attaches to pillow or wheelchair with supplied safety pin or Velcro attachment
• Up to 400M metre alarm transmission range (2023 model equipment only)
• Lightweight pager with a robust belt clip
• Low battery warning
• Complete kit supplied with all required batteries

Technical Features Pillow Switch Code: ANPLS
Dimensions: 80mm activation area
Weight: 30gConnection lead: 1.5 metres terminated with a 3.5mm jack plug
Activation type: Pressure
Activating force: 150 - 200g

Technical Features MPPLV4
Compatible with most Medpage/Easylink transmitter products
Tough and durable designed to last
Transmitter code learn-in button
3 channel unique alarm notification vibration patterns
Rugged belt clip
Powerful vibration alarm notification
Tone beepers with volume selection
Frequency 433 MHz
Dual selectable operating range 75-100M, 250-400M
Compatible with Medpage 2023 model extended range transmitters
Dimensions: 80mm x 55mm x 22mm
Weight including batteries 120g
Fixing for lanyard
Low battery warning led self-test at switch on.
Powered by 2 x AA batteries
Latching alarm - must be reset to cancel
Alarm alerts: vibrate only, vibrate + low tone, vibrate + high tone.
Can pair with up to 9 compatible transmitters
Use any number of pagers with single transmitter

Technical Features MPPL-TXU2
Dimensions: L 135mm W 35mm D 20mm
Power 2 x AAA Alkaline batteries
Power On/Off slide switch
Trigger input connection: 2.5mm mono jack socket
On-board reed relay switch magnetic door contact (included)
Status indicator LED Power, Alarm, Low Battery
Frequency: 433MHz
Crystal controlled frequency stability
Standard range: 75-150M (open field)
Extended range: 250-400M (open field)
Range compatibility selection by jumper
Transmitter coding by jumper selection
