Radio frequency receiver for wireless switching PRX001R

✓ Low-cost radio interfacing receiver
✓ Compatible with Medpage/Easylink transmitters
✓ Configurable alarm notification outputs and inputs N/O N/C
✓ Low power consumption with crystal frequency stabilising

Radio frequency receiver for wireless switching. The PRX001R is a general purpose remote control radio receiver producing a switched relay output with momentary or toggle latched operation. Ideal for wireless control of gates, panic alarms, Arm/Disarm of security systems and general wireless clean contact switching requirements.

Applications:

Emergency/Panic/Intrusion
System Arm/Disarm or On/Off
Lighting Control
Garage Door Control
Electric Shutter/Awning Control
General Switching

Receiver Connections

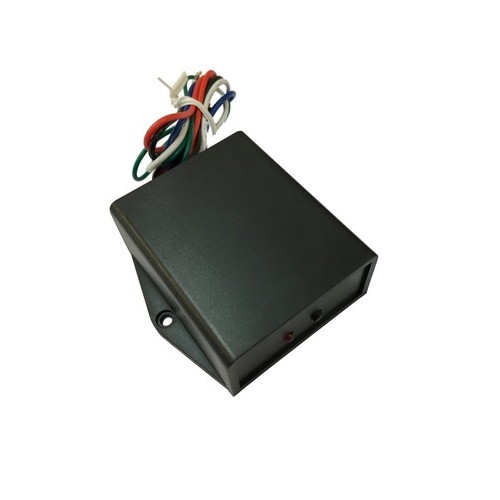

Each Receiver is supplied with two screws to secure the Housing to a suitable surface. There are 4 connection wires (PRX001R relay version).

Key Features

• Low cost - excellent performance
• Highly functional - multiple purpose 433.92 MHz - ETSI 300/220
• Learn up to 20 Transmitters to each Receiver
• Configurable output relay state N/O or N/C
• Typical range between 30 to 70M depending upon the Environment in which it is being used
• Receivers can be selected as having a momentary output or a toggle latching output

Connections
GREEN-ANTENNA - DO NOT SHORTEN
RED POSITIVE VOLTAGE CONNECTION (10- 16V)
BLACK - 0V CONNECTION
BLUE-OUTPUT
WHITE- COMMON OUTPUT FOR PRX001R RELAY

Technical Information
Receiver Voltage Supply: 10-16VDC
Receiver Current Consumption: Operating: 7mA Stand-by: 6mA
Operating Temperature: -10 to + 65C
Receiver Circuit: Super-regenerative
Drive Output:1A (Relay)
Size: 65 x 60 x 25mm
